Tuesday, October 26, 2010

The Reverse Strat

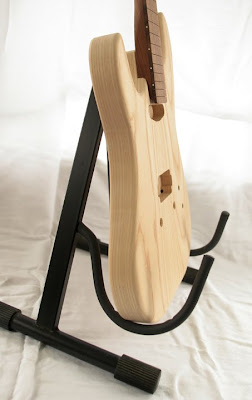

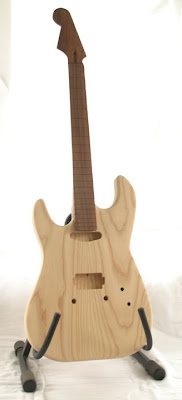

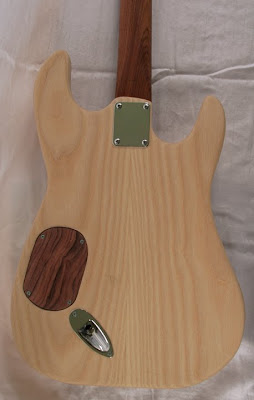

The body and neck start to take shape. The sides are rounded and the surface is sanded to 220 grit. The rear control panel is made from Pau Ferro to match the neck and fret-board. And yes, the output jack is located on the rear. I did this to a Start that I assembled as a teenager back in the 80's. I also did this on the Mahogany Tele that I started 10 years ago. This is designed so that the cord can be looped over the strap.

The Rough Cut Bodies



The bodies and neck blanks are matched with the fret-boards. I will be using a Macassar Ebony on the Tele and Pau Ferro on the Reverse Strat.

The fret boards were ordered by Luthier's Mercantile Exchange lmii.com. These are the rough cuts. As stated earlier, the walnut neck will not survive shaping.

Monday, October 25, 2010

The Neck Blanks








For the necks I opted for Pau Ferro and Walnut. Here are the rough cut outs of the blanks.






The Walnut neck did not survive the shaping. I carved too much wood off of the back near the nut and was able to see daylight shining through. The headstock later became a coaster. The walnut neck was replaced by a three piece with maple in the center and walnut on either side. Will post photos of that neck later.

Friday, October 22, 2010

The first two body blanks



I started with a 7 foot slab of 8/4 ash. This will give me two two-piece bodies with a little extra for a short Steinberger type body.





The two bodies are glued together in this picture and left to sit over night. These body blanks will become variations on a Tele and a Strat.




(While this blog entry is dated 10/22/10, the two bodies were started on 8/8/09. I will be playing catchup until I get up to date with my progress.)
